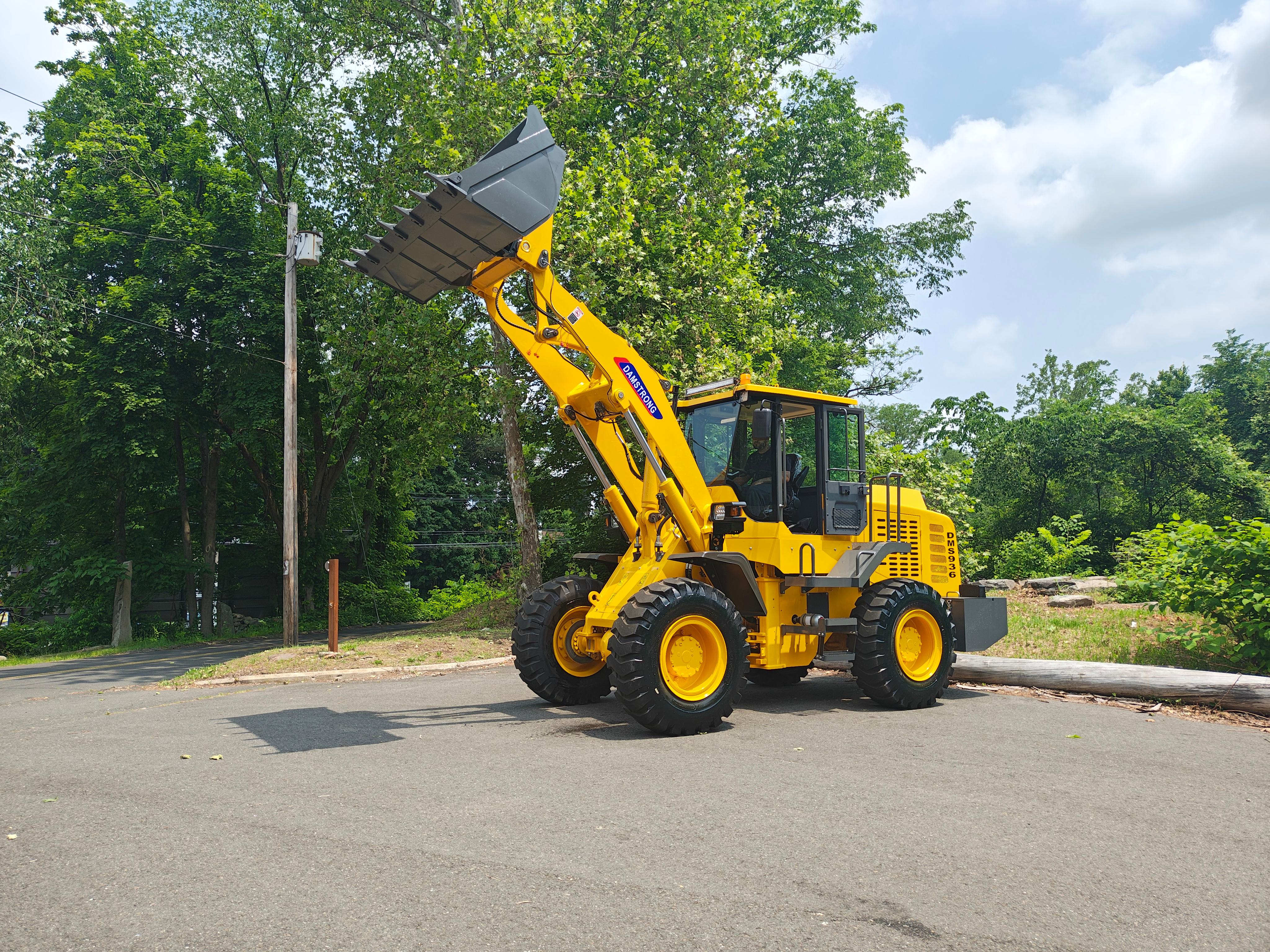

Wheel Loaders
Connecticut Wheel Loaders
When it comes to high-quality equipment, our 930, 922, 920, and more, wheel loaders will do just the trick for your commercial project needs. It’s low maintenance engine, and versatile features make it an extraordinary tool at an affordable price.

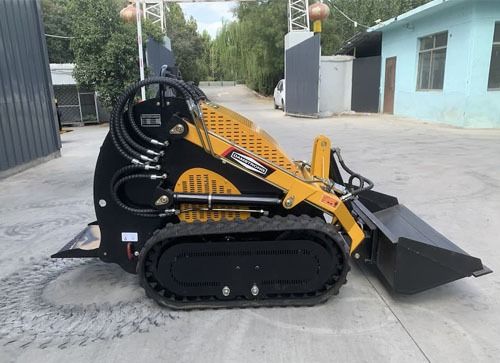

LTS23
LTS23 Specification
Rated Load
441
Max Load
661
Max lifting Force
992
Bucket Capacity
4.5CF
Driving Speed
3.5
System Pressure Bar
245-300 psi
Operating Weight
1940
Maximum Operating height(H)
94
Height Bucket Pin
74
Overall Height(C)
43
Max Height on Bucket Level State
71
Total Length Without Bucket(E)
55
Total Length (with bucket) (F)
73
Max Height Unloading Angle
Dumping height(A)
59
Dumping Distance
18
Bucket Overturning Angle On The Ground
27
Max Bucket Swing Angle
114
Wheel Base
24
Ground Clearance
5
Tail Length
11
Overall Width(I)
31
Bucket Width(U)
31

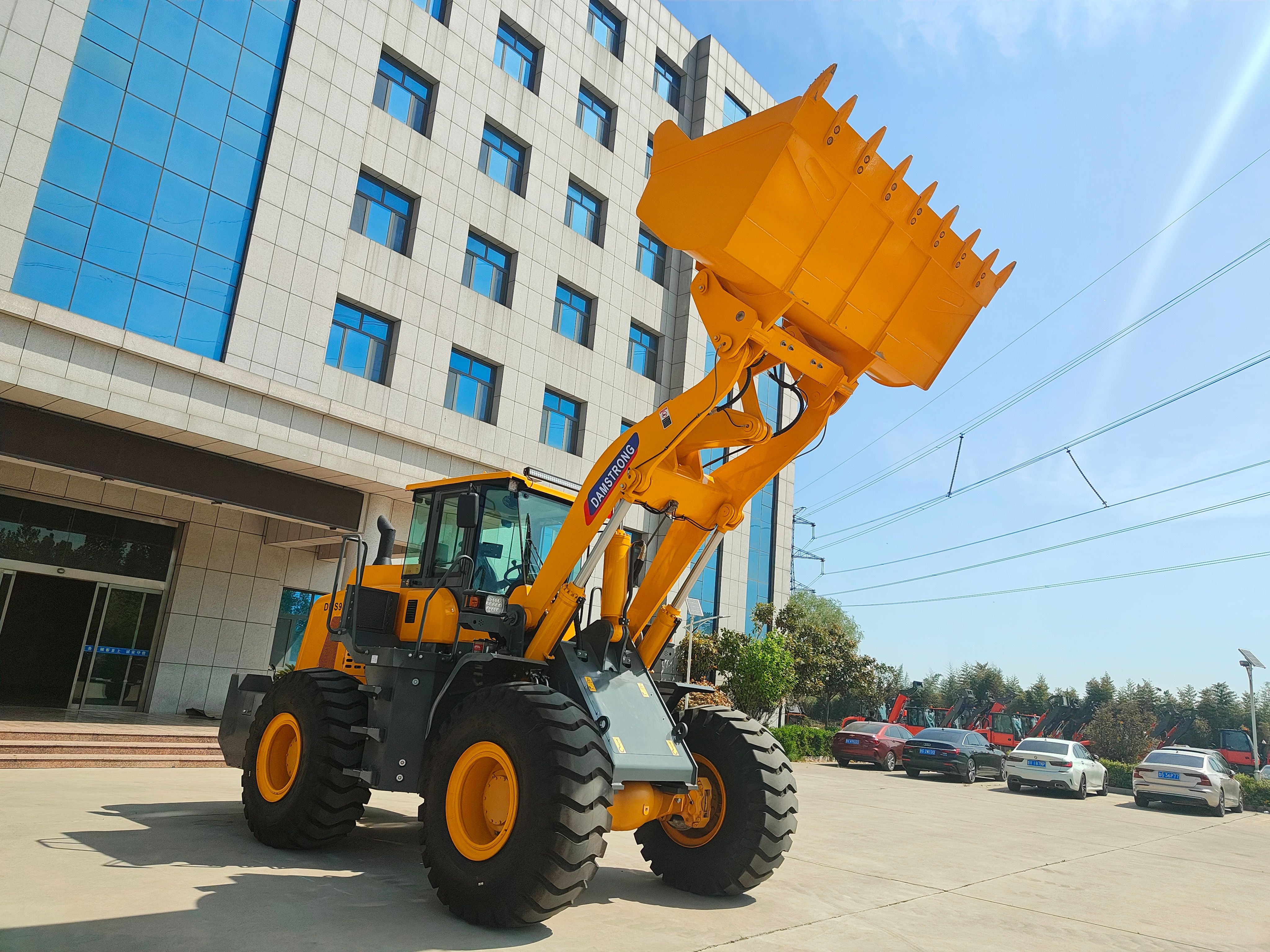

936 Wheel Loader
936 Specification
Overall weight(kg)
24,560
Engine
Cummins qsf 3.8
L×W×H(mm)
24’x7’6″x10′
Rated power(kw)
180 HP
Rated bucket capacity(m3)
2.6yd
Rated speed(r/min)
2500
Rated load(kg)
6.750 lb.
Transmission type
Auto
Dump height (mm)
12’8″
Gear shift
2 forward, 2 reverse
Tire
20.5-25
Driver Model
4WD
Axle
HUB reduction
Brakes
Air over Hydraulic
Max Grade
38
Max Speed
18 Mph
Turning Radius
13’8″
930 Wheel Loader
Joystick Quick change Air condition Pallet fork 16/70-24
The 930 wheel loader is an economical machine perfect for landscaping, material handling, or snow removal jobs. From moving sand and gravel to salt and snow, watch as your construction time cuts in half. You will not regret investing in one for your projects.
With quick change and quality joystick connections, our specialized loaders are created to make your work much easier. Each specification has different machine options, so you can find the perfect option for you.
930 Specification
Overall weight(lbs)
13,227
Engine
Cummins qsf 2.8
L×W×H(in)
21’x7’x9’6″
Rated power(kw)
74 hp
Rated bucket capacity(Yd)
1.6yd
Rated speed(r/min)
2500
Rated Load
4,500 lb.
Transmission type
Auto
Dump height (in)
12’8″
Gear shift
2 forward, 2 reverse
Tire
16/70R20
Drive Model
4WD
Axle
HUB reduction
Brakes
Hydraulic Assist
Max Grade
38
Max Speed
18Mph
Turning Radius
13’8″
Are You Ready?
When you're ready to get your hands on one of these high-quality machines, give us a call, and we can help you take your commercial job to the next level.
Wheel Loader Attachments
Empower it even more!
Call us to find out more about our attachments. We can work with you to decide which will be the most dependable choice for your current project or job!
Each job requires different kinds of attachments, depending on the size and time to complete it. That is why we offer extras for any season or location. From Pallet Forks to Snow Blades, our products will always meet your needs. We offer:
